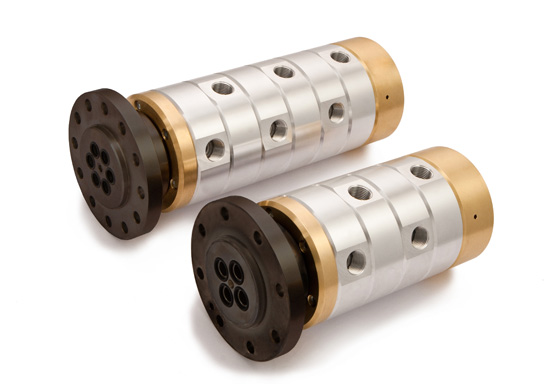

Series M – Rotoflux 2-4-6 Passages for High Pressure and Low Speed

The ROTOFLUX unions model M, thanks to the special design of the seals and the surface of the rotor ground, hardened and lapped may operate at high fluid pressure and low rotation speed with low friction and wear.

Also they may remain inactive for long periods without seizing. An antirotation pin is provided to prevent the rotation; stop it with a slack slot. To avoid contamination in case of leaks, it is necessary that one only type of fluid flows in both passages.

Avoid to operate the union under pressure surges, and, at the max suggested operating limits, without consulting the ROTOFLUX customer service.

Special version for clean water available.


Aria – Air – Luft – Aire 10 bar / 145 PSI 90°C / 195°F 250
Olio idraulico | Hydraulic oil 250 bar / 3.625 PSI 50 bar / 725 PSI – 250
250 bar / 3.625 – 15
Hydraulikol | Aceteite Hidraulico

Ordering code GiuntI doppio passaggio – Double passage unions 2-Wege Drehdurchführungen – Juntas de doble vía
Hydraulic oil Air B ø D E ø F I L M N O ø P ø Q ø R ø T ø U V ø X Y Z Kg
M210-000-03F M210-300-03F G 3/8″ 9 2×180° 142 89 5 137 64,5 29 33 60 90 108 16 24,5 12 10 30 93 4,8
Ordering code Giunti a quattro passaggi – Four passage unions 4-Wege Drehdurchführungen – Juntas de cuatro vías
Hydraulic oil Air B ø D E ø F I L M N O ø P ø Q ø R ø T ø U V ø X Y Z Kg
M410-000-03F M410-300-03F G 3/8″ 9 4×90° 200 89 5 195 64,5 29 33 60 90 108 16 24,5 12 10 30 122 6,0
Ordering code Giunti a sei passaggi – Six passage unions 6-Wege Drehdurchführungen – Juntas de seis vías
Hydraulic oil Air B ø D E ø F I L M N O ø P ø Q ø R ø T ø U V ø X Y Z Kg
M610-000-03F M610-300-03F G 3/8″ 8 6×60° 258 89 5 253 64,5 29 33 60 90 108 12,6 27 12 10 30 151 7,5
