Series M – Rotoflux Double Passage for High Pressure and Low Speed

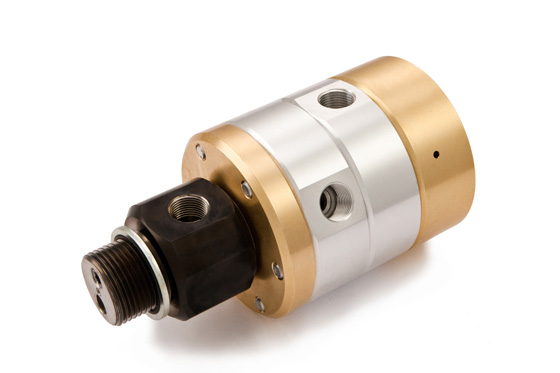

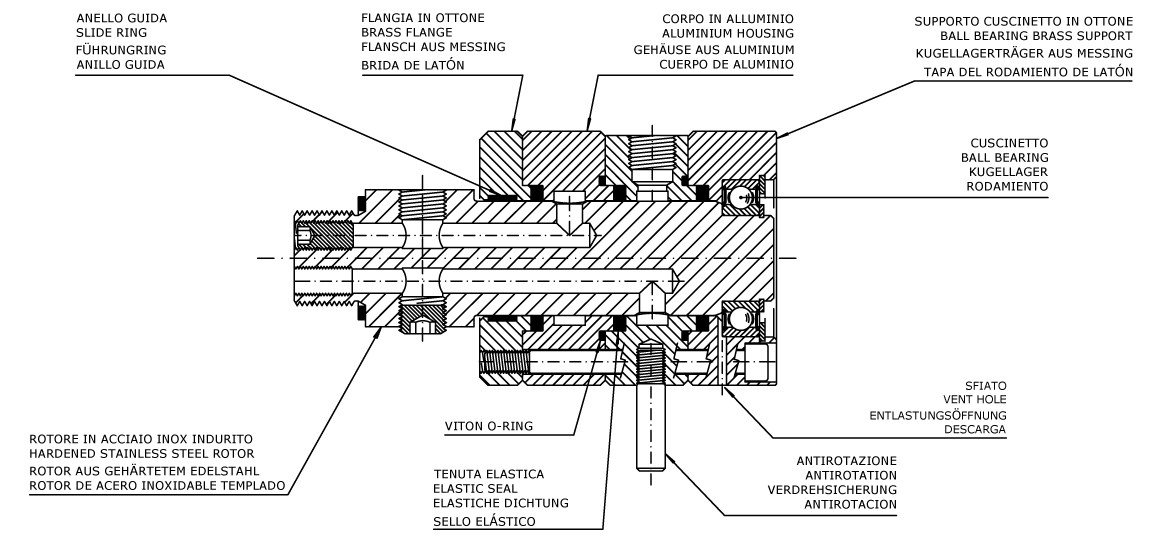

The ROTOFLUX unions model M, thanks to the special design of the seals and the surface of the rotor, ground hardened and lapped, may operate at high fluid pressure and low rotation speed with low friction and wear, for long time.

Also they may remain inactive for long periods without seizing. An antirotation pin is provided to prevent the rotation; stop it with a slack slot. To avoid contamination in case of leaks, it is necessary that one only type of fluid flows in both passages.

Avoid to operate the union under pressure surges, and, at the max suggested operating limits, without consulting the ROTOFLUX customer service.

Special version for clean water available.


Aria – Air – Luft – Aire 10 bar / 145 PSI 90°C / 195°F 250
Olio idraulico | Hydraulic oil 300 bar / 3.350 PSI 50 bar / 725 PSI – 250
250 bar / 3.625 – 15
Hydraulikol | Aceteite Hidraulico

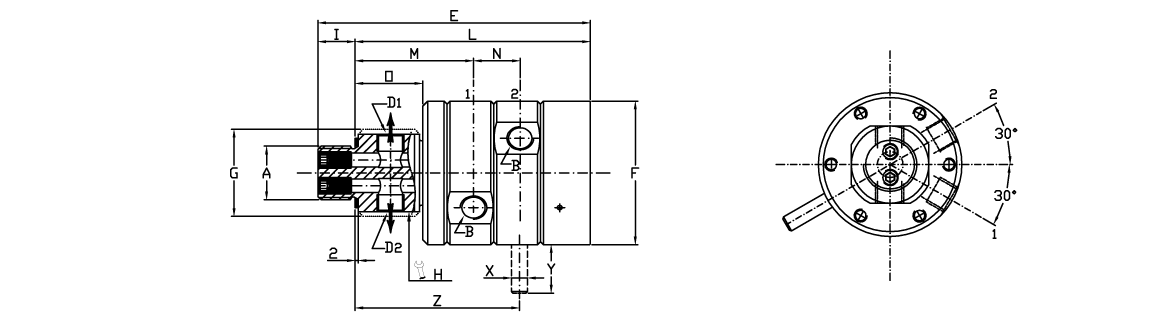

Ordering code Giunti doppio passaggio – Double passage unions 2-Wege Drehdurchführungen – Junta de doble vía
Hydraulic oil Air A B D1 ø D2 E ø F ø G H I L M N O ø X Y Z Kg
M210-000-01R M210-300-01R G 1″ RH G 3/8″ G 3/8″ 9 169 89 54 48 23 146 73,5 29 42 10 30 102 4,5
M220-000-05R M220-300-05R G 1 1/2″ RH G 3/4″ G 3/4″ 19 216 99,5 78 68 28 188 88 47 47 10 30 135 6,4

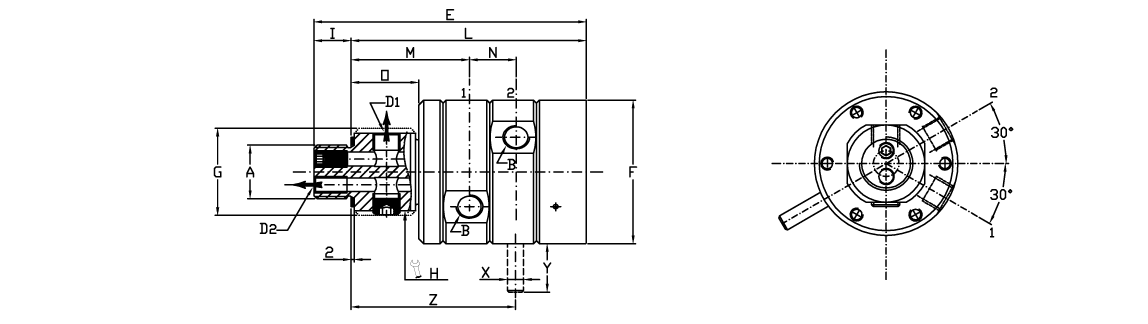

Ordering code Giunti doppio passaggio – Double passage unions 2-Wege Drehdurchführungen – Junta de doble vía
Hydraulic oil Air A B D1 D2 E ø F ø G H I L M N O ø X Y Z Kg
M210-002-01R M210-302-01R G 1″ RH G 3/8″ G 3/8″ G 3/8″ 169 89 54 48 23 146 73,5 29 42 10 30 102 4,5
M220-002-01R M220-302-01R G 1 1/2″ RH G 3/4″ G 3/4″ G 3/4″ 216 99,5 78 68 28 188 88 47 47 10 30 135 6,6

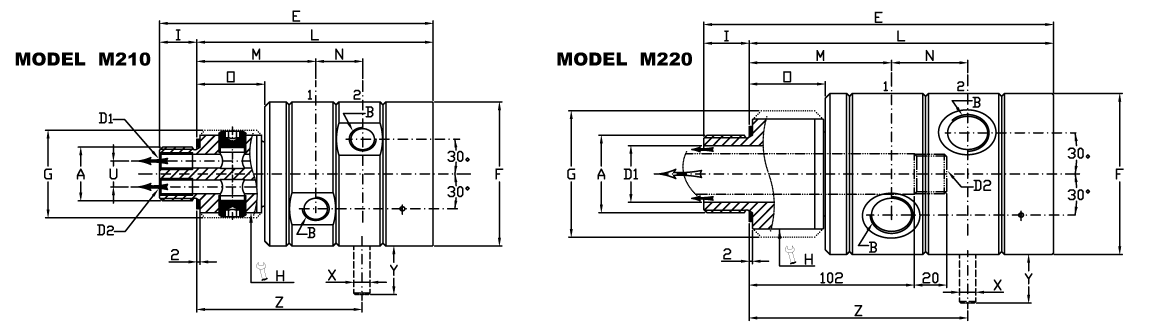

Ordering code Giunti doppio passaggio – Double passage unions 2-Wege Drehdurchführungen – Junta de doble vía
Hydraulic oil Air A B D1 D2 E ø F ø G H I L M N O U ø X Y Z Kg
M210-003-01R M210-303-01R G 1″ RH G 3/8″ G 1/8″ G 1/8″ 169 89 54 48 23 146 73,5 29 42 16 10 30 102 4,5
M220-004-03R M220-304-03R G 1 1/2″ RH G 3/4″ Ø35 G 3/4″ 216 99,5 78 68 28 188 88 47 47 10 30 135 5,6
