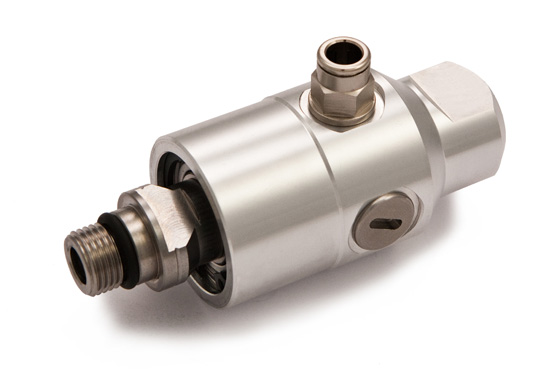

Series A – Rotoflux for High Speed Application

The unions of the model A are used for the passage of coolant through the machine tool spindles rotating at high speed. Well balanced seal assemblies in carbide allow a low friction torque and long life even with a poor filtration of the coolant.

Do not use the unions at max application limits without consulting ROTOFLUX.

  Model
Lubrorefrigerante | Coolant A08 100 bar / 1.450 PSI 90°C / 195°F 15.000 60 μ
(MAX 100)
Kuhlschmiermittel | Liquide Frigeradordo A10 40 bar / 580 PSI 10.000
Rotazione a secco | Dry run A08 / / NO /
Trockenlauf | Rotaciones en seco A10 NO

Ordering code Giunti radiali – 90° Unions – Radiale Drehdurchführungen – Juntas radiales
A B ø D E ø F1 ø F2 ø G H I L ø P Q U ø V Z Kg
A08-1301-04R M16 X 1,5 RH G 1/4″ 5 91 34 34,4 24,5 17 16 66 18 4,5 35 38 41 0,3
A08-1301-05L M16 X 1,5 LH
A10-1301-04R M16 X 1,5 RH G 3/8″ 9 110 43 44 24,5 17 16 82 18 4,5 43,6 47,5 53,5 0,5
A10-1301-05L M16 X 1,5 LH
Ordering code Giunti assiali – Straight through Unions – Axiale Drehdurchführungen – Juntas axiales
A B ø D E ø F1 ø F2 ø G H K I L ø P Q U ø V Z Kg
A08-1302-04R M16 X 1,5 RH G 1/4″ 5 108 34 34,4 24,5 17 30 16 92 18 4,5 35 38 41 0,3
A08-1302-05L M16 X 1,5 LH
A10-1302-04R M16 X 1,5 RH G 3/8″ 9 125 43 44 24,5 17 24 16 109 18 4,5 43,6 47,5 53,5 0,5
A10-1302-05L M16 X 1,5 LH
